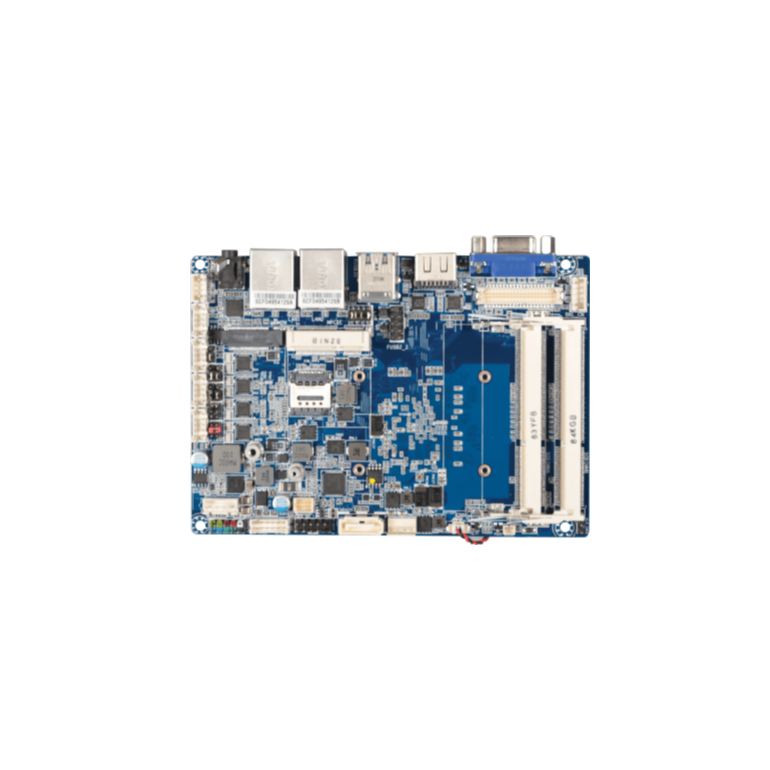

iTXL-3350A
Thin Mini-ITX form factor
Intel® Celeron® Processor N3350
Dual Channel DDR3L, 2 x SO-DIMMs
2 x GbE LAN ports
2 x SATA 6Gb/s ports
HDMI, Display Port, LVDS/eDP ports for multiple display
2 x RS232/422/485/5V/12V/RI COM ports
4 x RS232 COM ports
Support EMMC (optional)
Core System
| Part Number | iTXL-3350A (MZAPLBI) |
|---|---|
| Size(Format) | 6.7" (Mini-ITX) |
| CPU | Intel® Celeron® Processor N3350 14nm, 2 corres, 2 threads 1.10 - 2.40 GHz 2MB L2 cache TDP 6W 2MB L2 |
| Socket | 1 x FCBGA1296 |
| Chipset | ----- |
| Memory | 2x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Dual channel memory architecture Support DDR3L 1866MHz |
| Ethernet | 2 GbE LAN ports (Reatak® RTL8111HS) |
| Video | Intel HD Graphics 500 1 x HDMI port, supporting a maximum resolution of 3840x2160 @30Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz 1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz x support for HDMI 1.4 version |
| Audio | Realtek ALC269 High Definition Audio |
| Storage | 2 x SATA 6Gb/s ports (1 x switch with mSATA) |
| Raid | ----- |
| Expansion Slots | 1 x Mini PCIe (Half Size - PCIe Only) 1 x Mini PCIe (Full Size)(PCIe / mSATA) |
| Internal I/O | 1 x 4-pin ATX main power connector 2 x SATA 6Gb/s connectors 1 x USB 2.0 header 2 x USB 3.0 headers 1 x Front panel header 1 x Front panel audio header 1 x Speaker out header 1 x LVDS connector 1 x Back Light Switch 1 x System fan header 1 x CPU fan header 4 x COM Headers (RS-232) 2 x COM headers (RS-232/422/485 and RI/5V/12V) 2 x SATA Power 1 x eDP 1 x Keyboard/Mouse header 1 x GPIO (4 in/ 4 out) |
| Real I/O | 2 x Audio jacks (Line out, Mic in) 1 x HDMI 1 x Display Port 2 x RJ45 2 x USB2.0 2 x USB3.0 1 x DC Jack (+12Vdc) |
| TPM | 1 x TPM Header |
| OS Compatibility | Windows 10 (x64) |
| PSU Connectors | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | BOX Packing Capacity: 10pcs Carton size: 460 x 345 x 203 (mm) Content: IO Shield x 1 (12AIO-MKLPC0-00R) SATA Power cable x 1 (25CRI-200B02-K1R) |
| Order Information | Motherboard: 9MZAPLBIMR-SI |
| Optional kit: | TPM 1.2 module: 9CMUFLNR-00 TPM 2.0 module: 9CTM000NR-00 |
