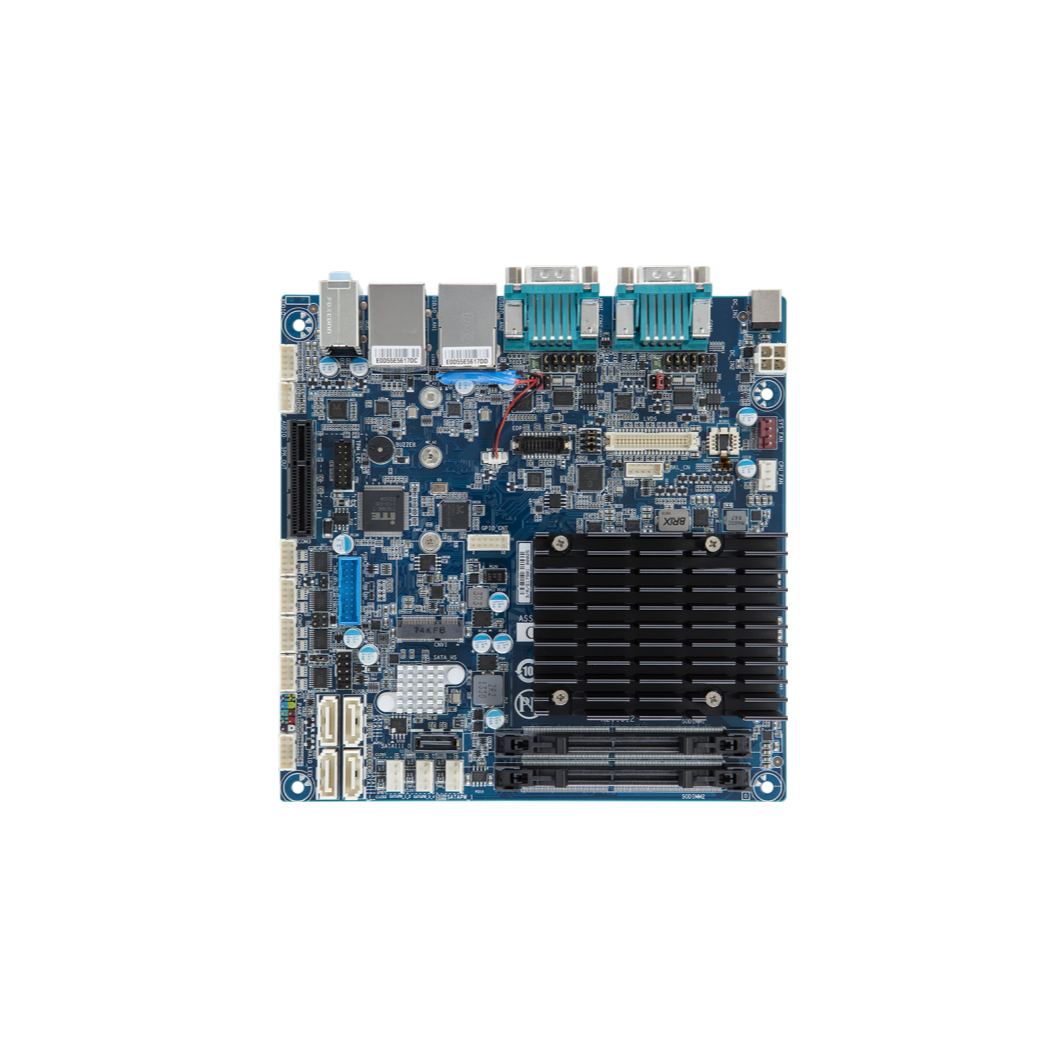

mITX-4105A
Mini-ITX form factor
Intel® Celeron® Processor J4105
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN ports
5 x SATA 6Gb/s ports with one SATA DOM supported
HDMI 2.0a, VGA, eDP (in option), LVDS ports for multiple display
1 x PCIe x4 (Gen2 x 2) expansion slot
2 x RS232/422/485/5V/12V COM ports
4 x RS232 COM ports
Core System
Part Number | mITX-4105A (Mini-ITX) |
---|---|
Size(Format) | 6.7" (Mini-ITX) |
CPU | Intel® Celeron® processor D J4105 Quad Core SoC Processor up to 2.5 GHz |
Chipset | SoC integrated |
System Memory | 1x SO-DIMM DDR4 2400MHz up to 8 GB |
Storage | 5x SATA III + M.2 SSD |
Display Interface | 1x HDMI, 1x VGA, 1x 18/24-bit LVDS |
USB 2.0 | 3 |
USB 3.0 | 4 |
RS232 | 4 |
RS232/422/48585 | 2 |
WiFi option | YES |
SIM Slot | NO |
Power Consumption | 12V |
Temperature Range | 0ºC ~ +60ºC |
