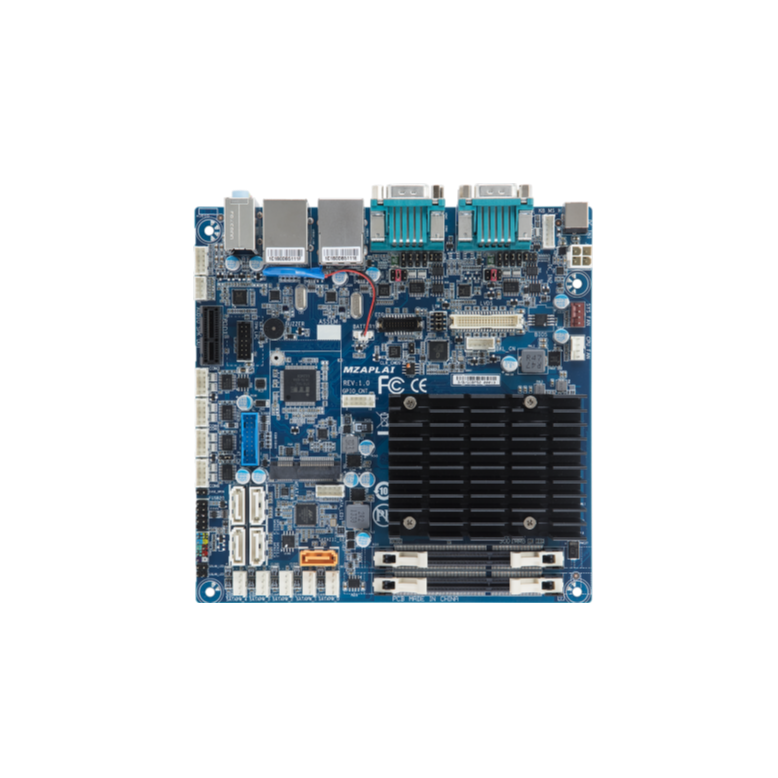

mITX-4205A
Mini-ITX form factor
Intel® Pentium® Processor J4205
Dual Channel DDR3L, 2 x SO-DIMMs
2 x GbE LAN ports
5 x SATA 6Gb/s and 1 x mSATA
Support 1 x SATA DOM
HDMI 1.4b, D-Sub, eDP/ LVDS ports for multiple display
1 x PCIe x1 (Gen2 x 1) expansion slot
2 x RS232/422/485/5V/12V/RI COM ports
4 x RS232 COM ports
Core System
| Part Number | mITX-4205A |
|---|---|
| Size(Format) | 6.7" (Mini-ITX) |
| CPU | Intel® Celeron® processor D J4205 Quad Core SoC Processor up to 2.6 GHz |
| Chipset | SoC integrated |
| System Memory | 1x SO-DIMM DDR4 2400MHz up to 8 GB |
| Storage | 5x SATA III + mSATA SSD |
| Display Interface | 1x HDMI, 1x VGA, 1x 18/24-bit LVDS, 1x eDP |
| USB 2.0 | 5 |
| USB 3.0 | 4 |
| RS232 | N/A |
| RS232/422/48585 | 2 |
| WiFi option | YES |
| SIM Slot | NO |
| Power Consumption | 12V /19V /24V |
| Temperature Range | 0ºC ~ +60ºC |
