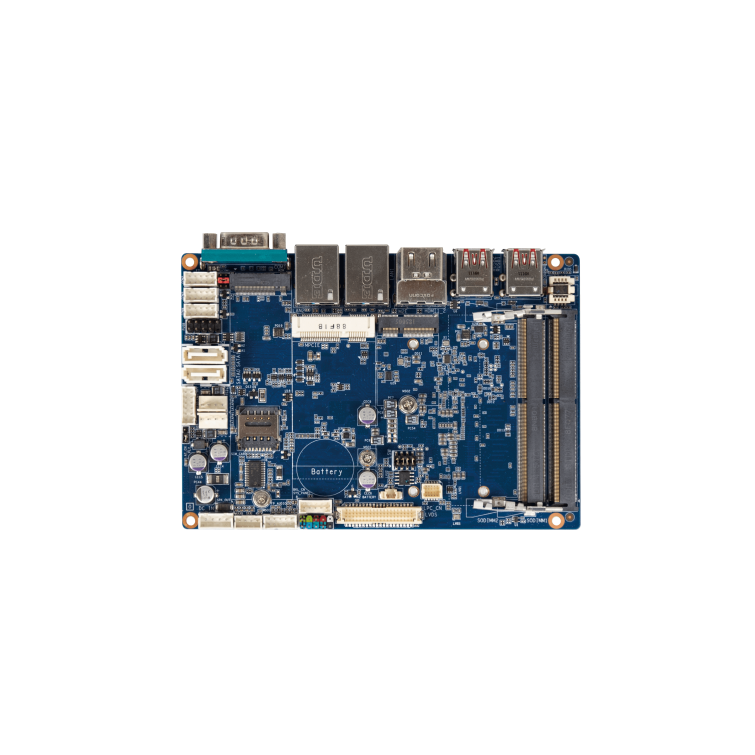

QBiP-8265A
3.5’’ SBC
Intel® Core™ i5-8265U Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN ports
2 x SATA 6Gb/s ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
2 x HDMI, LVDS ports for multiple display
1 x RS-232/422/485 and 5V/12V/RI COM port
3 x RS-232 COM ports
4 x USB 3.1 Gen 2
Core System
| Part Number | QBiP-8265A |
|---|---|
| Size(Format) | 3.5" |
| CPU | Intel® Core™ i7-8565U Processor 14nm, 4 cores, 8 threads 1.8GHz, up to 4.6 GHz |
| Chipset | SoC integrated |
| System Memory | 2x SO-DIMM DDR4 2400MHz up to 32 GB |
| Storage | 2x SATA III + 1x M.2 SSD |
| Display Interface | 2x HDMI, 1x LVDS |
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| RS232 | 3 |
| RS232/422/48585 | 1 |
| WiFi option | YES |
| SIM Slot | YES |
| Power Consumption | 9V - 36V |
| Temperature Range | 0ºC ~ +60ºC |
